Performance test of Pig vs Hive with code examples

Performance testing high level Hadoop query languages with example scripts. Analysis of NOAA weather data: Western-European weather stations from 1980 to 2014, daily dataset of temperature (tmin and tmax) and precipitation data (prcp). Dataset is a structured table, non-existent measurement cells are filled with -9999. Example: STATION,STATION_NAME,DATE,PRCP,TMAX,TMIN GHCND:NLE00109300,STAVENISSE NL,19800101,53,-9999,-9999 GHCND:NLE00109300,STAVENISSE NL,19800102,21,-9999,-9999 GHCND:NLE00109300,STAVENISSE NL,19800103,133,-9999,-9999 … GHCND:NLE00109202,MARUM NL,20080602,0,-9999,-9999 GHCND:NLE00109202,MARUM NL,20080603,36,-9999,-9999 GHCND:NLE00109202,MARUM NL,20080604,4,-9999,-9999 … Data size: 1 Gb / 4 Gb / 8 Gb (the same 333 Mb data file replicated 3 / 12 / 24 times) HDFS block size: 128 Mb Platform:

  • HDP 2.1.3
    • Hadoop 2.4.0
    • Pig 0.12.1
    • Hive 0.13.0
    • HBase 0.98.0

Cluster:

  • 4 Dell workstations of
    • Quad core Core I5-2400
    • 4-8 Gb RAM
    • 1 TB SATA HDDs
    • Hadoop
      • Master and Slaves not separated (next task: separate them and redo measurement)
      • Machine 1 (8 Gb RAM)
        • KDE, Nagios, Ganglia, NodeManager, Zookeeper, RegionServer, Hue, Datanode
      • Machine 2 (4 Gb RAM)
        • DataNode
      • Machine 3 (8 Gb RAM)
        • HiveServer, NameNode, Oozie, Zookeeper, Datanode
      • Machine 4 (8 Gb RAM)
        • SNameNode, ResourceManager, Datanode
  • Gigabit LAN network (Hadoop traffic only)

Measured running scripts with Bash Shell, time command (e.g. time pig 1.pig)

Weather analysis tasks with Pig, Hive and HBase

Task 1 - example Pig and Hive scripts.

Table ordered by max HighTemperature Table:(Station, Date, MaxTemp) Pig script

A = LOAD '/user/hdfs/Weather.csv' using PigStorage(',');

B = FOREACH A GENERATE $1 as station, (int) SUBSTRING($2, 0, 4) as year, (int) $4 as tmax, (int) $5 as tmin;

C1 = FILTER B BY tmax > -9999;

D1 = ORDER C1 by tmax;

STORE D1 into '/user/hdfs/Weather_Pig1.csv' using PigStorage(',');

__ Hive script - A variant

CREATE EXTERNAL TABLE weather1 (stationcode STRING, station STRING, datefield STRING, prcp DOUBLE, tmax DOUBLE, tmin DOUBLE) ROW FORMAT DELIMITED FIELDS TERMINATED BY ',';

LOAD DATA INPATH '/user/hdfs/Weather.csv' OVERWRITE INTO TABLE weather1;

CREATE TABLE weather_res1 (station STRING, datefield STRING, tmax INT);

INSERT OVERWRITE TABLE weather_res1

SELECT station, datefield, tmax FROM weather1 WHERE tmax <> -9999 ORDER BY tmax DESC;

Hive script - B variant Data pre-loaded __

INSERT OVERWRITE TABLE weather_res1

SELECT station, datefield, tmax FROM weather1 WHERE tmax <> -9999 ORDER BY tmax DESC;

Task 2 - example Pig and Hive scripts

Max temperatures per year per station Table:(Distinct:Station, Year, MaxHighTemp) Pig script

A = LOAD '/user/hdfs/Weather/Weather.csv' using PigStorage(',');

B = FOREACH A GENERATE $1 as station, (int) SUBSTRING($2, 0, 4) as year, (int) $4 as tmax, (int) $5 as tmin;

C1 = FILTER B BY tmax > -9999;

D1 = GROUP C1 by (station, year);

E1 = FOREACH D1 GENERATE group.station as station, (int) group.year, MAX(C1.tmax);

STORE E1 into '/user/hdfs/Weather_Pig2.csv' using PigStorage(',');

Hive script - A variant

CREATE EXTERNAL TABLE weather2 (stationcode STRING, station STRING, datefield STRING, prcp DOUBLE, tmax DOUBLE, tmin DOUBLE) ROW FORMAT DELIMITED FIELDS TERMINATED BY ',';

LOAD DATA INPATH '/user/hdfs/Weather.csv' OVERWRITE INTO TABLE weather2;

CREATE TABLE weather_temp2 (station STRING, datefield INT, tmax INT);

INSERT OVERWRITE TABLE weather_temp2

SELECT station, cast(SUBSTR(datefield,1,4) as INT), tmax FROM weather2 WHERE tmax <> -9999;

CREATE TABLE weather_res2 (station STRING, datefield INT, tmax INT);

INSERT OVERWRITE TABLE weather_res2

SELECT station, datefield, MAX(tmax) FROM weather_temp2 GROUP BY station, datefield;

__ Hive script - B variant Data pre-loaded, leaving out temp table creation, running type casting twice

INSERT OVERWRITE TABLE weather_res2

SELECT station, cast(SUBSTR(datefield,1,4) as INT), MAX(tmax) FROM weather2WHERE tmax <> -9999 GROUP BY station, cast(SUBSTR(datefield,1,4) as INT);

Task 3 - example Pig and Hive scripts

Average temperatures per year per station Table:(Distinct:Station, Year, AvgHighTemp) Pig script

A = LOAD '/user/hdfs/Weather/Weather.csv' using PigStorage(',');

B = FOREACH A GENERATE $1 as station, (int) SUBSTRING($2, 0, 4) as year, (int) $4 as tmax, (int) $5 as tmin;

C1 = FILTER B BY tmax > -9999;

D1 = GROUP C1 by (station, year);

E1 = FOREACH D1 GENERATE group.station as station, (int) group.year, AVG(C1.tmax);

STORE E1 into '/user/hdfs/Weather_Pig3.csv' using PigStorage(',');

Hive script - A variant

CREATE EXTERNAL TABLE weather3 (stationcode STRING, station STRING, datefield STRING, prcp DOUBLE, tmax DOUBLE, tmin DOUBLE) ROW FORMAT DELIMITED FIELDS TERMINATED BY ',';LOAD DATA INPATH '/user/hdfs/Weather.csv' OVERWRITE INTO TABLE weather3;

CREATE TABLE weather_temp3 (station STRING, datefield INT, tavg INT);

INSERT OVERWRITE TABLE weather_temp3

SELECT station, cast(SUBSTR(datefield,1,4) as INT), tmax FROM weather3 WHERE tmax <> -9999;

CREATE TABLE weather_res3 (station STRING, datefield INT, tavg INT);

INSERT OVERWRITE TABLE weather_res3

SELECT station, datefield, AVG(tavg) FROM weather_temp3 GROUP BY station, datefield;

Hive script - B variant Data pre-loaded, leaving out temp table creation, running type casting twice

CREATE TABLE weather_res3 (station STRING, datefield INT, tavg INT);

INSERT OVERWRITE TABLE weather_res3

SELECT station, cast(SUBSTR(datefield,1,4) as INT), AVG(tmax) FROM weather3 WHERE tmax <> -9999 GROUP BY station, cast(SUBSTR(datefield,1,4) as INT);

Task 4 - example Pig and Hive scripts

Max mean yearly temperature Table: (Distinct:Station, MaxYear, MaxMeanTemp) MeanTemp: AVG((MaxTemp-MinTemp)/2) Pig script

A = LOAD '/user/hdfs/Weather/Weather.csv' using PigStorage(',');

B = FOREACH A GENERATE $1 as station, (int) SUBSTRING($2, 0, 4) as year, (int) $4 as tmax, (int) $5 as tmin;

C1 = FILTER B BY tmax > -9999 AND tmin > -9999;

D1 = FOREACH C1 GENERATE station as station, year as year, ((tmax-tmin)/2) as avgt;

DESCRIBE D1;

E1 = GROUP D1 by (station, year);

F1 = FOREACH E1 GENERATE group.station as station, (int) group.year, MAX(D1.avgt) as avgt;

G1 = GROUP F1 by station;

H1 = FOREACH G1 {

	I1 = ORDER F1 BY avgt DESC;

	J1 = LIMIT I1 1;

	GENERATE group, J1.(year, avgt);

};

STORE H1 into '/user/hdfs/Weather_Pig4.csv' using PigStorage(',');

Hive script - A variant

CREATE EXTERNAL TABLE weather4 (stationcode STRING, station STRING, datefield STRING, prcp DOUBLE, tmax DOUBLE, tmin DOUBLE) ROW FORMAT DELIMITED FIELDS TERMINATED BY ',';LOAD DATA INPATH '/user/hdfs/Weather.csv' OVERWRITE INTO TABLE weather4;

CREATE EXTERNAL TABLE weather4_temp (station STRING, year INT, tmax DOUBLE, tmin DOUBLE);

INSERT OVERWRITE TABLE weather4_temp SELECT station, cast(SUBSTR(datefield,1,4) as INT), tmax, tmin FROM weather4 WHERE tmax > -9999 and tmin > -9999;

CREATE EXTERNAL TABLE weather4_temp2 (station STRING, year INT, meanTemp DOUBLE);

INSERT OVERWRITE TABLE weather4_temp2 SELECT station, year, AVG((tmax-tmin)/2) FROM weather4_temp GROUP BY station, year;

CREATE EXTERNAL TABLE weather4_temp3 (station STRING, maxMeanTemp DOUBLE);

INSERT OVERWRITE TABLE weather4_temp3 SELECT station, MAX(meanTemp) FROM weather4_temp2 GROUP BY station;

CREATE TABLE weather_res4 (station STRING, year INT, tavg INT);

INSERT OVERWRITE TABLE weather_res4

SELECT w.station, w.year, ww.maxMeanTemp FROM weather4_temp2 w JOIN weather4_temp3 ww ON w.meanTemp = ww.maxMeanTemp;

Hive script - B variant Data pre-loaded, leaving out temp table creation, running type casting twice.

CREATE EXTERNAL TABLE weather4_temp (station STRING, year INT, maxMeanTemp DOUBLE);

INSERT OVERWRITE TABLE weather4_temp1 SELECT station, cast(SUBSTR(datefield,1,4) as INT), AVG((tmax-tmin)/2) FROM weather4 WHERE tmax > -9999 and tmin > -9999 GROUP BY station, cast(SUBSTR(datefield,1,4) as INT);

CREATE EXTERNAL TABLE weather4_temp2 (station STRING, maxMeanTemp DOUBLE);

INSERT OVERWRITE TABLE weather4_temp2 SELECT station, MAX(meanTemp) FROM weather4_temp2 GROUP BY station;

CREATE TABLE weather_res4 (station STRING, year INT, tavg INT);

INSERT OVERWRITE TABLE weather_res4

SELECT w.station, w.year, ww.maxMeanTemp FROM weather4_temp1 w JOIN weather4_temp2 ww ON w.meanTemp = ww.maxMeanTemp;

Task 5 - example Pig and Hive scripts

Average temperatures per year of station STAVENISSE Select one only weather station and average all time precipitation data. Table:(STAVENISSE, Year, AvgHighTemp) Pig script

A = LOAD '/user/hdfs/weather/weather.csv' using PigStorage(',');

B = FOREACH A GENERATE $1 as station, (int) SUBSTRING($2, 0, 4) as year, (int) $4 as tmax, (int) $5 as tmin;

C1 = FILTER B BY tmax > -9999 AND station MATCHES '.*STAVENISSE.*';

D1 = GROUP C1 by station;

E1 = FOREACH D1 GENERATE group as station, AVG(C1.tmax);

STORE E1 into '/user/hdfs/Weather_Pig5.csv' using PigStorage(',');

Hive script - A variant

CREATE EXTERNAL TABLE weather5 (stationcode STRING, station STRING, dateield STRING, prcp DOUBLE, tmax DOUBLE, tmin DOUBLE) ROW FORMAT DELIMITED FIELDS TERMINATED BY ',';

LOAD DATA INPATH '/user/hdfs/Weather.csv' OVERWRITE INTO TABLE weather5;

CREATE TABLE weather_temp5 (station STRING, datefield INT, tmax INT);

INSERT OVERWRITE TABLE weather_temp5

SELECT station, cast(SUBSTR(datefield,1,4) as INT), tmax FROM weather2 WHERE tmax <> -9999 AND station LIKE '%STAVENISSE%';

CREATE EXTERNAL TABLE weather_res5 (station STRING, datefield INT, tmax INT);

INSERT OVERWRITE TABLE weather_res5

SELECT station, datefield, AVG(tmax) FROM weather_temp5 GROUP BY station, datefield;

Hive script - B variant Data pre-loaded, leaving out temp table creation, running type casting twice __

INSERT OVERWRITE TABLE weather_res5

SELECT station, cast(SUBSTR(datefield,1,4) as INT), AVG(tmax) FROM weather5 WHERE tmax <> -9999 AND station LIKE '%STAVENISSE%' GROUP BY station, cast(SUBSTR(datefield,1,4) as INT);

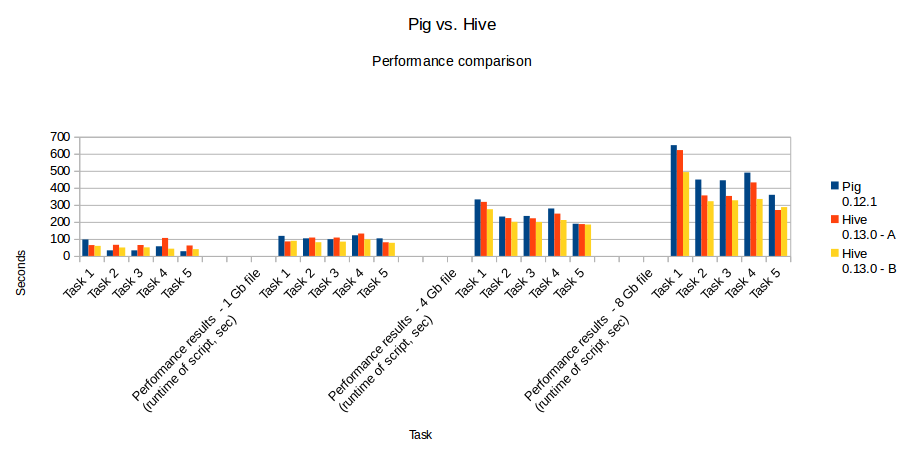

Performance assessment - results

Performance Comparison Performance Comparison Performance results? - 0.3 Gb file(runtime of script, sec)Pig 0.12.1Hive 0.13.0 - AHive 0.13.0 - B
Task 197.00363.73259.258
Task 233.04765.31749.654
Task 333.13264.40150.756
Task 456.667105.68542.856
Task 527.96161.27639.968
Performance results? - 1 Gb file(runtime of script, sec)Pig 0.12.1Hive 0.13.0 - AHive 0.13.0 - B
————
Task 1117.9885.17788.75
Task 2103.498108.13280.482
Task 398.341108.10984.423
Task 4121.446131.52897.637
Task 5103.43580.03977.061
Performance results? - 4 Gb file(runtime of script, sec)Pig 0.12.1Hive 0.13.0 - AHive 0.13.0 - B
————
Task 1332.186317.524274.322
Task 2231.333222.432200.421
Task 3235.11221.321199.657
Task 4278.645248.512211.236
Task 5189.288187.425184.549
Performance results? - 8 Gb file?(runtime of script, sec)Pig 0.12.1Hive 0.13.0 - AHive 0.13.0 - B
————
Task 1650.598621.599492.499
Task 2448.898355.509321.543
Task 3444.240352.421326.700
Task 4489.455432.078334.770
Task 5358.91269.815287.089
