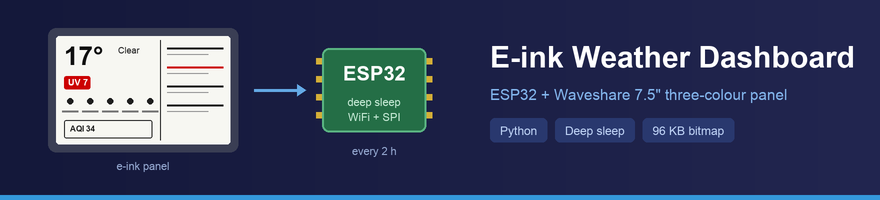

A 7.5-inch E-ink Weather & Calendar Dashboard Powered by ESP32

GxEPD2_3C<GxEPD2_750c_Z08, GxEPD2_750c_Z08::HEIGHT / 8> display(
  GxEPD2_750c_Z08(EPD_CS, EPD_DC, EPD_RST, EPD_BUSY));

SPI.begin(13, -1, 14, 15);  // CLK, MISO (unused), MOSI, CS
display.init(115200, true, 10, false);
display.setRotation(0);

const char* WIFI_SSID  = "YOUR_WIFI_SSID";
const char* WIFI_PASS  = "YOUR_WIFI_PASSWORD";
const char* BITMAP_URL = "http://YOUR_SERVER_IP:8081/bitmap.bin";

#define SLEEP_SECONDS    7200    // 2 hours between refreshes
#define WIFI_TIMEOUT_MS  20000   // give up on WiFi after 20 s
#define HTTP_TIMEOUT_MS  30000   // give up on the download after 30 s

Glance PHP proxies (localhost:8081)
  ├── idokep.php    → weather JSON
  ├── aqicn.php     → air quality JSON
  └── icsproxy.php  → calendar JSON
         ↓
generate_bitmap.py  (runs on the NAS)
  → fetches all three sources

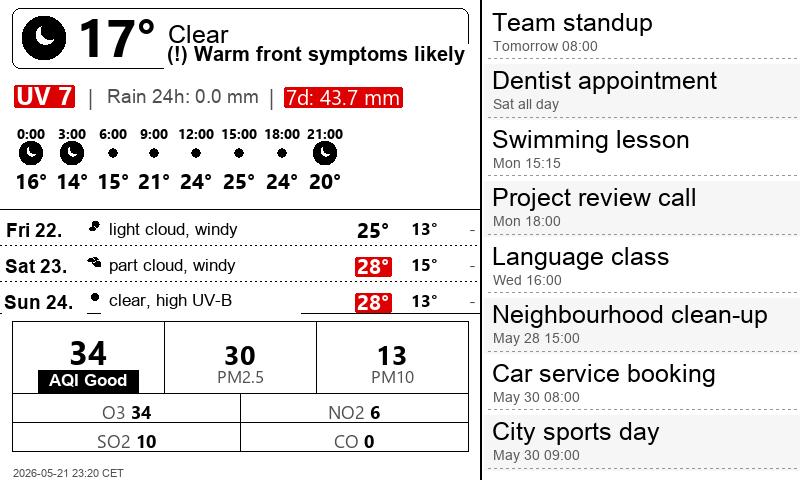

  → renders an 800x480 RGB image with Pillow
  → converts it to a 2-plane BWR bitmap
  → writes bitmap.bin (96 000 bytes)
         ↓
HTTP server (LAN, :8081)
  → serves bitmap.bin on GET
         ↓
ESP32 (wakes from deep sleep every 2 hours)
  → connects to WiFi
  → downloads bitmap.bin (96 KB)
  → renders to e-paper over SPI
  → radio off, panel off
  → back to deep sleep

def to_2plane(img: Image.Image) -> bytes:
    """
    Returns 96 000 raw bytes: BW plane (48 000) followed by red plane (48 000).
    Convention (GxEPD2_3C):
      BW plane  : bit 1 = white, bit 0 = black
      Red plane : bit 1 = no red, bit 0 = red pixel
    """
    r_ch, g_ch, b_ch = img.split()

    # pixels where R > 200 AND G < 100 AND B < 100 count as red
    r_high = r_ch.point(lambda v: 255 if v > 200 else 0)
    g_low  = g_ch.point(lambda v: 255 if v < 100 else 0)
    b_low  = b_ch.point(lambda v: 255 if v < 100 else 0)
    red_mask = ImageChops.multiply(ImageChops.multiply(r_high, g_low), b_low)

    # BW plane: greyscale content, with red pixels replaced by white
    grey     = img.convert("L")
    bw_plane = Image.composite(Image.new("L", img.size, 255), grey, red_mask)

    # red plane: 255 where NOT red, 0 where red
    red_plane = ImageOps.invert(red_mask)

    bw_data  = bw_plane.convert("1", dither=Image.NONE).tobytes()
    red_data = red_plane.convert("1", dither=Image.NONE).tobytes()
    return bw_data + red_data

GLANCE_BASE  = "http://YOUR_SERVER_IP:8081/glance"
OUT_BIN      = os.path.join(os.path.dirname(__file__), "bitmap.bin")

WEATHER_CITY = "Szeged"
WEATHER_LAT  = "46.253"
WEATHER_LON  = "20.149"
AQI_URL      = "https://aqicn.org/city/.../"
CALENDAR_ICS = os.environ["CALENDAR_ICS_URL"]   # private feed, never hard-coded

W, H        = 800, 480
WEATHER_W   = 480                 # 60 %
CALENDAR_W  = W - WEATHER_W - 2   # 318 px

def fetch_calendar(limit: int = 8) -> dict:
    r = _sess.get(f"{GLANCE_BASE}/icsproxy.php",
                  params={"url": CALENDAR_ICS, "tz": "Europe/Budapest",
                          "days": 60, "limit": limit},
                  timeout=15)
    r.raise_for_status()
    return r.json()

def safe_fetch(name: str, fn) -> dict:
    try:
        return fn()
    except Exception as e:
        print(f"  {name} fetch failed: {e}", file=sys.stderr)
        return {}   # render continues with an empty panel

_FC: dict = {}

def _font(size: int, bold: bool = False) -> ImageFont.ImageFont:
    k = (size, bold)
    if k in _FC:
        return _FC[k]
    REG  = ["C:/Windows/Fonts/segoeui.ttf", "C:/Windows/Fonts/arial.ttf",
            "/usr/share/fonts/truetype/dejavu/DejaVuSans.ttf",
            "/System/Library/Fonts/Helvetica.ttc"]
    BOLD = ["C:/Windows/Fonts/segoeuib.ttf", "C:/Windows/Fonts/arialbd.ttf",
            "/usr/share/fonts/truetype/dejavu/DejaVuSans-Bold.ttf"]
    for p in (BOLD + REG if bold else REG):
        try:
            _FC[k] = ImageFont.truetype(p, size)
            return _FC[k]
        except (IOError, OSError):
            pass
    _FC[k] = ImageFont.load_default()
    return _FC[k]

def _draw_sun(size: int) -> Image.Image:
    import math
    img = Image.new("L", (size, size), 255)
    d   = ImageDraw.Draw(img)
    cx = cy = size / 2
    r_body = size * 0.28
    d.ellipse([(cx - r_body, cy - r_body), (cx + r_body, cy + r_body)], fill=0)
    for i in range(8):                      # 8 rays at 45 degree steps
        a  = math.radians(i * 45)
        x0 = cx + size * 0.36 * math.cos(a); y0 = cy + size * 0.36 * math.sin(a)
        x1 = cx + size * 0.48 * math.cos(a); y1 = cy + size * 0.48 * math.sin(a)
        d.line([(x0, y0), (x1, y1)], fill=0, width=max(2, int(size * 0.07)))
    return img

// Pass 1: split master events from per-instance overrides (RECURRENCE-ID).
$masters   = [];
$overrides = [];   // uid => [ recurrence-id timestamp => override event ]
foreach ($matches[1] as $block) {
    $event = parse_vevent($block, $tz);
    if (!$event) continue;
    if (!empty($event['recurrence_id'])) {
        $overrides[$event['uid']][$event['recurrence_id']->getTimestamp()] = $event;
    } else {
        $masters[] = $event;
    }
}

// Pass 2: expand masters, skipping occurrences an override replaces.
foreach ($masters as $event) {
    if (($event['status'] ?? '') === 'CANCELLED') continue;   // whole series deleted
    $evOverrides = $overrides[$event['uid']] ?? [];
    foreach (expand_occurrences($event, $now, $horizon) as $occ) {
        if (isset($evOverrides[$occ->getTimestamp()])) continue;   // superseded
        $events[] = format_event($occ, $event, $now, $tz);
    }
}

// Pass 3: emit modified instances at their new time, drop cancelled ones.
foreach ($overrides as $perUid) {
    foreach ($perUid as $ovr) {
        if (($ovr['status'] ?? '') === 'CANCELLED') continue;   // single instance deleted
        $start = $ovr['dtstart'];
        if ($start <= $horizon && $start >= $now) {
            $events[] = format_event($start, $ovr, $now, $tz);
        }
    }
}

void setup() {
  Serial.begin(115200);

  bwBuf  = new uint8_t[PLANE_BYTES];   // 48 000 bytes each
  redBuf = new uint8_t[PLANE_BYTES];

  SPI.begin(13, -1, 14, 15);           // CLK, MISO (unused), MOSI, CS
  display.init(115200, true, 10, false);
  display.setRotation(0);

  if (!connectWiFi())   { goToSleep(); return; }
  if (!downloadBitmap()){ goToSleep(); return; }

  WiFi.disconnect(true);
  WiFi.mode(WIFI_OFF);                 // radio off before the slow SPI refresh
  renderBitmap();
  goToSleep();
}

void loop() { /* never reached, deep sleep restarts from setup() */ }

static void goToSleep() {
  WiFi.disconnect(true);
  WiFi.mode(WIFI_OFF);
  display.powerOff();
  esp_sleep_enable_timer_wakeup((uint64_t)SLEEP_SECONDS * 1000000ULL);
  esp_deep_sleep_start();
}

WiFiClient* stream = http.getStreamPtr();
size_t pos = 0;
uint8_t chunk[512];
unsigned long deadline = millis() + HTTP_TIMEOUT_MS;

while (pos < (size_t)BITMAP_BYTES && millis() < deadline) {
  int avail = stream->available();
  if (avail <= 0) { if (!stream->connected()) break; delay(1); continue; }
  size_t want = min((size_t)avail, min(sizeof(chunk), (size_t)BITMAP_BYTES - pos));
  size_t got  = stream->readBytes(chunk, want);
  for (size_t i = 0; i < got; i++) {
    size_t p = pos + i;
    if (p < (size_t)PLANE_BYTES) bwBuf[p] = chunk[i];      // first 48 000 to BW
    else                         redBuf[p - PLANE_BYTES] = chunk[i];  // rest to red
  }
  pos += got;
}
if (pos != (size_t)BITMAP_BYTES) return false;   // truncated, keep the old image
